Single and Dual VT200 Compatible Charging Cables
Ensure your front-line team is always powered up and ready to record. Designed specifically for the Motorola VT200 Body Worn Video Camera, our heavy-duty in vehicle charging cradles are available in both single and dual configurations to fit your exact operational needs. Featuring integrated USB cables and secure docking.
Ideal for single crewed vehicles or decentralized charging within a vehicle. Features a compact footprint that easily mounts to any flat surface. Complete with an easily replaceable USB cable available in different lengths for extra flexibility. Charges one VT200 unit at a time using the vehicles existing USB chargers. Requires 1x USB outlet, either existing or to be fitted to the vehicle.

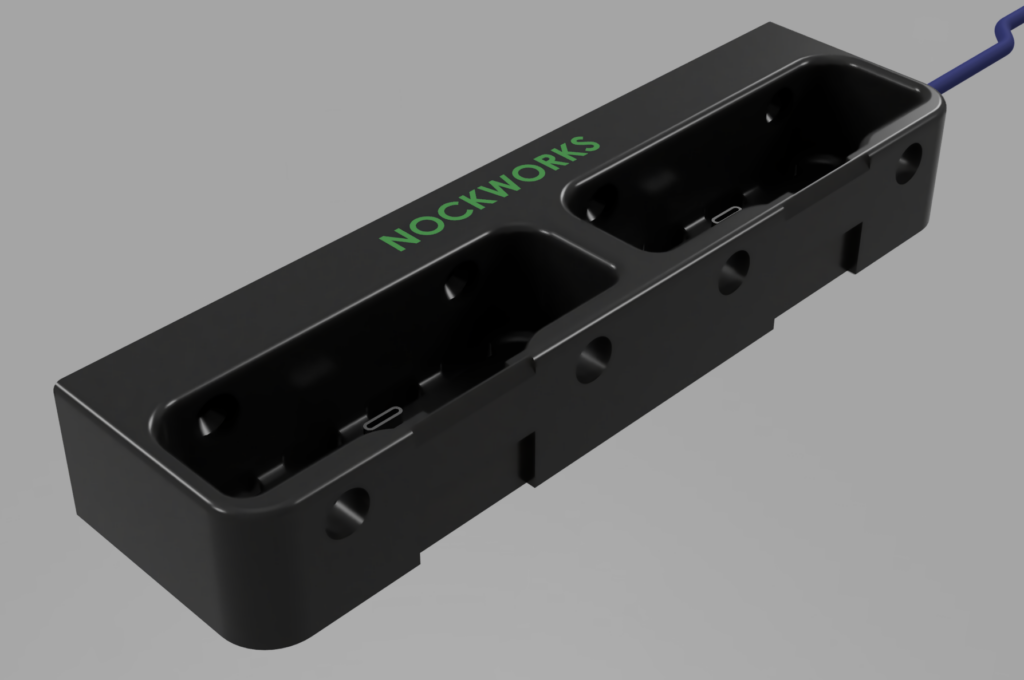

Ideal for double crewed vehicles a vehicle. Features a compact footprint that easily mounts to any flat surface. Complete with two integrated and easily replaceable USB cables. The cables are available in different lengths for extra installation flexibility. Charges two VT200 unit at a time using the vehicles existing USB chargers. Requires 2x USB outlets either existing or fitted to the vehicle.
Key Features
- Can be used as a non-charging “holder” or a complete charging solution using the supplied USB cables and securing clips.
- Integrates into existing power systems via pre-existing USB ports.
- Secure retention of the V200 Camera using its own attachment clip.
- Easy “one handed” removal and insertion of camera.
- Spill resistant design allowing drainage of any spilled fluids while diverting away from USB connectors.
- Retains cameras securely when travelling at high speed over rough terrain, traversing vertical deflection devices and variable road surfaces.
- Designed to withstand forces that may be involved with a vehicle collision helping to provide a safe environment for operational staff.
- Easy to maintain modular design – if a component fails, replace only that component instead of the whole dock.
- Field serviceable with no specialist tools or equipment
- Made from impact resistant ABS plastic, the same material most vehicle interiors and dashboards.
|
Physical Specifications |
|
|
Weight |
49.2 grams |
|
Dimensions |
185mm x 29mm x 50mm |
|
Environmental Rating |
IP67 |
|
Operating Temperature |
-20°C to +80°C |
|
Mounting Options |
Mounting via 4 x M4 countersunk screws in rear or dock, can be mounted against flat surfaces vertically or horizontally. Surface adaptors available separately for non-planar surfaces |
|
Camera retention force |
200 Newtons vertical pull |
|
Impact resistance force |
150 Newtons vertical and horizontal shock loading |
|
Spill Resistance |
Eight drainage holes per camera, raised plinth for USB connection |
|
Connectivity |
|
|
Cable length |
Interchangeable and independent USB charging cables allow customisation of length of cable to meet mounting requirements |
|
USB Support |
Provides secure mounting of USB Compliant charging cables capable of supplying 2.4A continuous |
|
Power Supply |
Easily integrated into existing vehicle power systems using existing USB power sources. |
